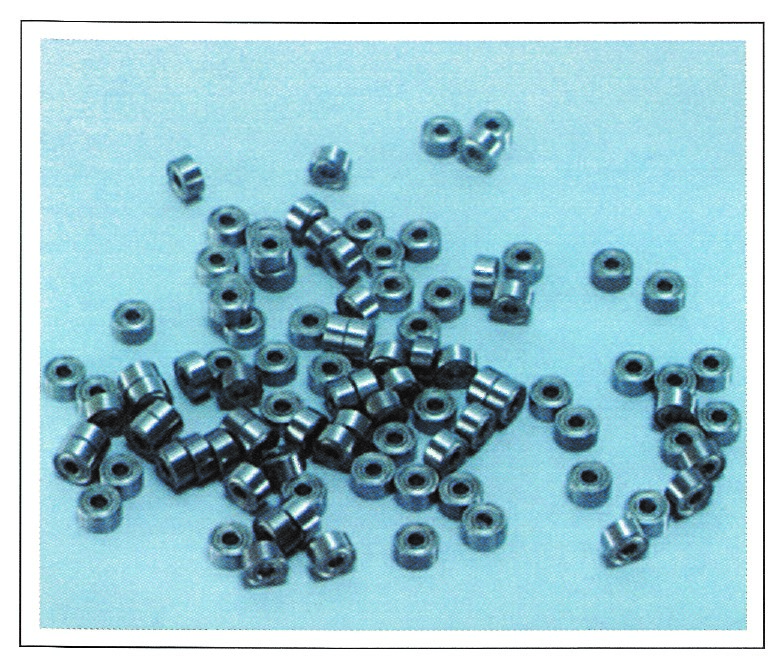

Rulmenti minaturali
|

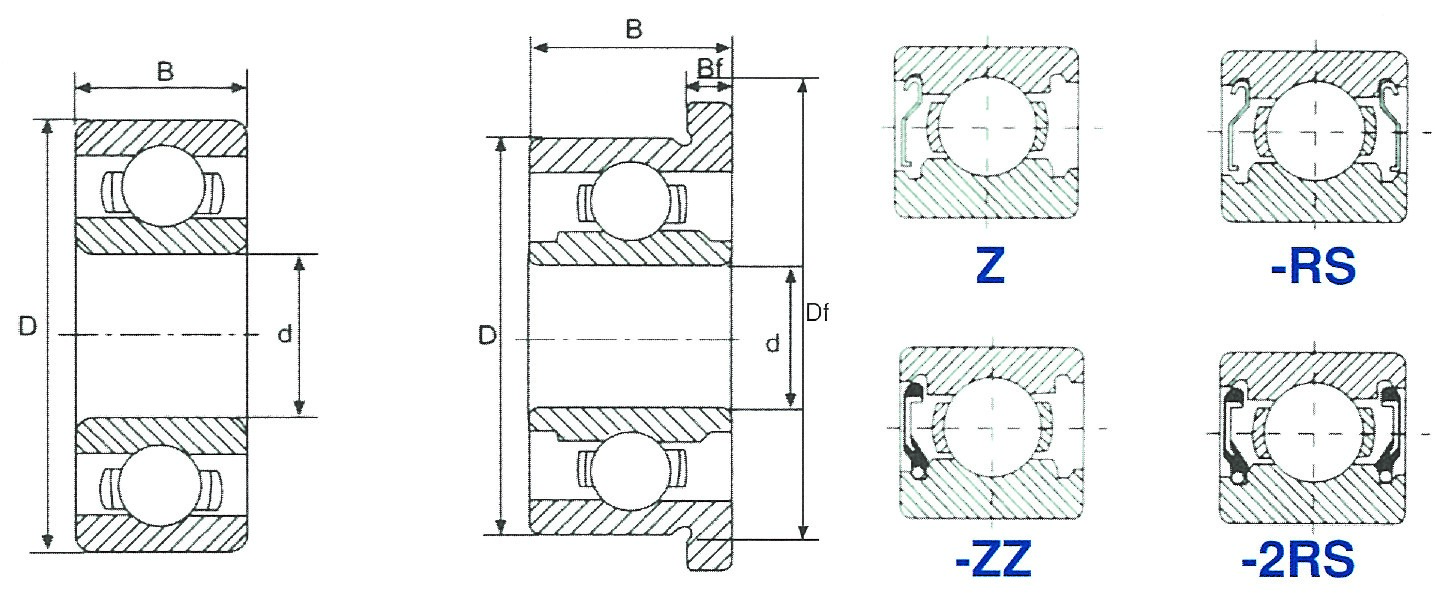

Bearing Number |
Dimension |
Flange Diameter Df (mm) |
Flange Width |
Weigth |
|||||
|
d |
D |
B |
Bf (mm) |
||||||
|
Open |
Sealed |
Open |
Sealed |
Open |
Sealed |
||||
|
682 |
2 |
5 |
1.5 |
2.3 |
6.1 |
0.5 |
0.6 |
0.15 |
0.20 |
|
MR52 |
2 |
5 |
2.0 |
2.5 |
6.2 |
0.6 |
0.6 |
0.14 |
0.20 |
|
692 |
2 |
6 |
2.3 |
3.0 |
7.5 |
0.6 |
0.8 |
0.28 |
0.35 |
|
MR62 |
2 |
6 |
2.5 |
2.5 |
7.2 |
0.6 |
0.6 |
0.28 |
0.33 |
|
MR72 |
2 |
7 |
2.5 |
3.0 |
8.2 |
0.6 |
0.6 |
0.43 |
0.53 |
|
602 |
2 |
7 |
2.8 |
3.5 |
8.5 |
0.7 |
0.9 |
0.50 |
0.60 |
|
682X |
2.5 |
6 |
1.8 |
2.6 |
7.2 |
0.5 |
0.8 |
0.27 |
0.34 |
|
692X |
2.5 |
7 |
2.5 |
3.5 |
8.1 |
0.7 |
0.9 |
0.45 |
0.55 |
|
MR82X |
2.5 |
8 |
2.5 |
3.0 |
9.2 |
0.6 |
0.8 |
0.50 |
0.66 |
|
602X |
2.5 |
8 |
2.8 |
4.0 |
9.5 |
0.7 |
0.9 |
0.58 |
0.78 |
|
MR63 |
3 |
6 |
2.0 |
2.5 |
7.2 |
0.6 |
0.6 |
0.20 |
0.28 |
|
683 |
3 |
7 |
2.0 |
3.0 |
8.1 |
0.5 |
0.8 |
0.32 |
0.45 |
|
MR83 |
3 |
8 |
2.5 |
3.0 |
9.2 |
0.6 |
0.6 |
0.51 |
0.67 |
|
693 |
3 |
8 |
3.0 |
4.0 |
9.5 |
0.7 |
0.9 |
0.60 |
0.80 |
|
MR93 |
3 |
9 |
2.5 |
4.0 |
10.2 |
0.6 |
0.8 |
0.75 |
1.30 |
|
603 |
3 |
9 |
3.0 |
5.0 |
10.5 |
0.7 |
1.0 |
0.84 |
1.43 |
|
623 |
3 |
10 |
4.0 |
4.0 |
11.5 |
1.0 |
1.0 |
1.45 |
1.65 |
|
633 |
3 |
13 |
5.0 |
5.0 |
15.0 |
1.0 |
1.0 |
3.27 |
3.43 |
|
MR74 |
4 |
7 |
2.0 |
2.5 |
8.2 |
0.6 |
0.6 |
0.23 |
0.33 |
|
MR84 |
4 |
8 |
2.0 |
3.0 |
9.2 |
0.6 |
0.6 |
0.39 |
0.56 |
|
684 |
4 |
9 |
2.5 |
4.0 |
10.3 |
0.6 |
1.0 |
0.65 |
1.00 |
|
MR104 |
4 |
10 |
3.0 |
4.0 |
11.2 |
0.6 |
0.8 |
0.96 |
1.33 |
|
694 |
4 |
11 |
4.0 |
4.0 |
12.5 |
1.0 |
1.0 |
1.69 |
1.75 |
|
604 |
4 |
12 |
4.0 |
4.0 |
13.5 |
1.0 |
1.0 |
2.19 |
2.34 |
|
624 |
4 |
13 |
5.0 |
6.0 |
15.0 |
1.0 |
1.0 |
3.10 |
3.20 |
|
634 |
4 |
16 |
5.0 |
6.0 |
18.0 |
1.0 |
1.0 |
5.24 |
5.44 |
|
MR85 |
5 |
8 |
2.0 |
2.5 |
9.2 |
0.6 |
0.6 |
0.25 |
0.34 |
|
MR95 |
5 |
9 |
2.5 |
3.0 |
10.2 |
0.6 |
0.6 |
0.54 |
0.58 |
|
MR105 |
5 |
10 |
3.0 |
4.0 |
11.2 |
0.6 |
0.8 |
0.91 |
1.26 |
|
MR115 |
5 |
11 |
--- |
4.0 |
12.6 |
--- |
0.8 |
--- |
0.62 |
|
685 |
5 |
11 |
3.0 |
5.0 |
12.5 |
0.8 |
1.0 |
1.16 |
1.93 |
|
695 |
5 |
13 |
4.0 |
4.0 |
15.0 |
1.0 |
1.0 |
2.39 |
2.31 |
|
605 |
5 |
14 |
5.0 |
5.0 |
16.0 |
1.0 |
1.0 |
3.46 |
3.75 |
|
685 |
5 |
16 |
5.0 |
5.0 |
18.0 |
1.0 |
1.0 |
4.95 |
5.10 |
|
635 |
5 |
19 |
6.0 |
6.0 |
22.0 |
1.5 |
1.5 |
8.5 |
22.0 |
|
MR106 |
6 |
10 |
2.5 |
3.0 |
11.2 |
0.6 |
0.6 |
0.55 |
0.70 |
|
MR126 |
6 |
12 |
3.0 |
4.0 |
13.2 |
0.6 |
0.8 |
1.25 |
1.66 |
|
686 |
6 |
13 |
3.5 |
5.0 |
15.0 |
1.0 |
1.1 |
1.87 |
2.68 |
|
696 |
6 |
15 |
5.0 |
5.0 |
17.0 |
1.2 |
1.2 |
3.85 |
3.65 |
|
606 |
6 |
17 |
6.0 |
6.0 |
19.0 |
1.2 |
1.2 |
5.94 |
6.89 |
|
626 |
6 |
19 |
6.0 |
6.0 |
22.0 |
1.5 |
1.5 |
8.12 |
8.65 |
|
636 |
6 |
22 |
7.0 |
7.0 |
25.0 |
1.5 |
1.5 |
13.90 |
14.50 |
|
MR117 |
7 |
11 |
2.5 |
3.0 |
12.2 |
0.6 |
0.6 |
0.59 |
0.71 |
|
MR137 |
7 |
13 |
3.0 |
4.0 |
14.2 |
0.6 |
0.8 |
1.52 |
2.01 |
|
687 |
7 |
14 |
3.5 |
5.0 |
16.0 |
1.0 |
1.1 |
2.03 |
2.95 |
|
697 |
7 |
17 |
5.0 |
5.0 |
19.0 |
1.2 |
1.2 |
5.26 |
5.01 |
|
607 |
7 |
19 |
6.0 |
6.0 |
22.0 |
1.5 |
1.5 |
7.80 |
8.24 |
|
627 |
7 |
22 |
7.0 |
7.0 |
25.0 |
1.5 |
1.5 |
12.70 |
13.10 |
|
637 |
7 |
26 |
9.0 |
9.0 |
29.0 |
2.0 |
2.0 |
24.20 |
25.80 |
|
MR128 |
8 |
12 |
2.5 |
3.5 |
13.2 |
0.6 |
0.8 |
0.70 |
0.99 |
|
MR148 |
8 |
14 |
3.5 |
4.0 |
15.6 |
0.8 |
0.8 |
1.90 |
2.19 |
|
688 |
8 |
16 |
4.0 |
5.0 |
18.0 |
1.0 |
1.1 |
3.11 |
4.05 |
|
698 |
8 |
19 |
6.0 |
6.0 |
22.0 |
1.5 |
1.5 |
7.12 |
7.57 |
|
608 |
8 |
22 |
7.0 |
7.0 |
25.0 |
1.5 |
1.5 |
11.80 |
12.90 |
|
628 |
8 |
24 |
8.0 |
8.0 |
--- |
--- |
--- |
17.10 |
18.50 |
|
638 |
8 |
28 |
9.0 |
9.0 |
--- |
--- |
--- |
28.10 |
30.30 |
|
679 |
9 |
14 |
3.0 |
4.5 |
15.5 |
0.8 |
0.8 |
1.35 |
1.98 |
|
689 |
9 |
17 |
4.0 |
5.0 |
19.0 |
1.0 |
1.1 |
3.41 |
4.38 |
|
699 |
9 |
20 |
6.0 |
6.0 |
23.0 |
1.5 |
1.5 |
8.38 |
8.54 |
|
609 |
9 |
24 |
7.0 |
7.0 |
27.0 |
1.5 |
1.5 |
14.70 |
16.00 |
|
629 |
9 |
26 |
8.0 |
8.0 |
--- |
--- |
--- |
19.00 |
21.80 |
|
639 |
9 |
30 |
10.0 |
10.0 |
--- |
--- |
--- |
36.20 |
37.10 |
|
R133 |
0.0937" |
0.1875" |
0.0625" |
0.0937" |
0.2340" |
0.0180" |
--- |
0.10 |
0.15 |
|
R1-5 |
0.0937" |
0.3125" |
0.1094" |
0.1406" |
0.3590" |
0.0230" |
0.0310" |
0.60 |
1.15 |
|
R144 |
0.1250" |
0.2500" |
0.0937" |
0.1094" |
0.2960" |
0.0230" |
0.0310" |
0.27 |
0.40 |
|
R2-5 |
0.1250" |
0.3125" |
0.1094" |
0.1406" |
0.3590" |
0.0230" |
0.0310" |
0.50 |
0.74 |
|
R2-6 |
0.1250" |
0.3750" |
0.1094" |
0.1406" |
0.4220" |
0.0230" |
0.0310" |
0.96 |
1.23 |
|
R2 |
0.1250" |
0.3750" |
0.1562" |
0.1562" |
0.4400" |
0.0300" |
0.0300" |
1.04 |
1.37 |
|
R2A |
0.1250" |
0.5000" |
0.1719" |
0.1719" |
--- |
--- |
--- |
3.30 |
3.30 |
|
R155 |
0.1562" |
0.3125" |
0.1094" |
0.1250" |
0.3590" |
0.0230" |
0.0360" |
0.51 |
0.61 |
|
R156 |
0.1875" |
0.3125" |
0.1094" |
0.1250" |
0.3590" |
0.0230" |
0.0360" |
0.40 |
0.45 |
|
R166 |
0.1875" |
0.3750" |
0.1250" |
0.1250" |
0.4220" |
0.0230" |
0.0310" |
0.81 |
0.85 |
|
R3 |
0.1875" |
0.5000" |
0.1562" |
0.1960" |
0.5650" |
0.0420" |
0.0420" |
2.21 |
2.95 |
|
R3A |
0.1875" |
0.6250" |
0.1960" |
0.1960" |
--- |
--- |
--- |
4.75 |
5.08 |
|
R168 |
0.2500" |
0.3750" |
0.1250" |
0.1250" |
0.4220" |
0.0230" |
0.0360" |
0.57 |
0.60 |
|
R188 |
0.2500" |
0.5000" |
0.1250" |
0.1875" |
0.5470" |
0.0230" |
0.0450" |
1.60 |
2.32 |
|
R4 |
0.2500" |
0.6250" |
0.1960" |
0.1960" |
0.6900" |
0.0420" |
0.0420" |
4.46 |
4.54 |
|
R4A |
0.2500" |
0.7500" |
0.2188" |
0.2812" |
--- |
--- |
--- |
7.48 |
10.00 |
|
R1810 |
0.3125" |
0.5000" |
0.1562" |
0.1562" |
0.5470" |
0.0310" |
0.0310" |
1.39 |
1.57 |
|
R6 |
0.3750" |
0.8750" |
0.2188" |
0.2812" |
0.9690" |
0.0620" |
0.0620" |
9.02 |
11.70 |
|
R8 |
0.5000" |
1.1250" |
0.2500" |
0.3125" |
1.2252" |
0.0620" |
0.0620" |
11.60 |
24.10 |
