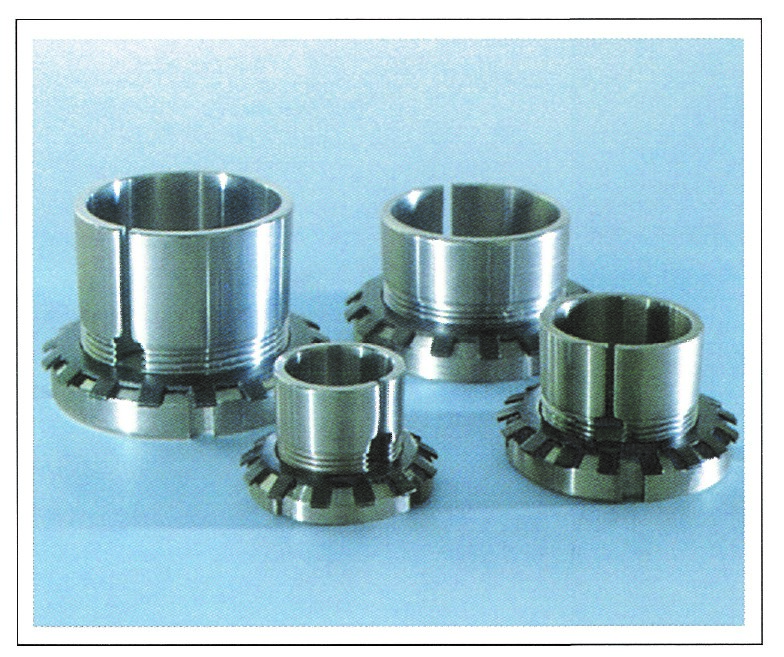

Bucse de strangere

Bearing No.

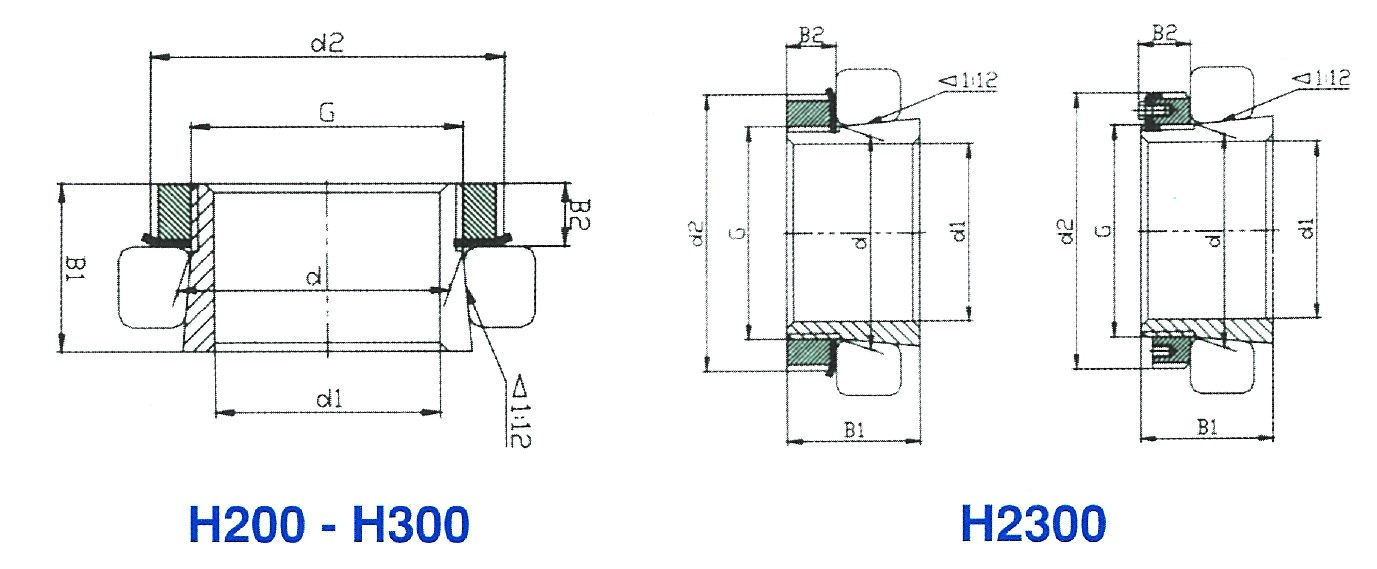

Dimensions (mm)

Composition

Weight

d

d2

B1

B2

Locknut

Lockwasher

H204

20

32

24

7

KM4

MB4

0,04

H205

25

38

26

8

KM5

MB5

0,07

H206

30

45

27

8

KM6

MB6

1,10

H207

35

52

29

9

KM7

MB7

0,13

H208

40

58

31

10

KM8

MB8

0,17

H209

45

65

33

11

KM9

MB9

0,23

H210

50

70

35

12

KM10

MB10

0,27

H211

55

75

37

12

KM11

MB11

0,31

H212

60

80

38

13

KM12

MB12

0,35

H213

65

85

40

14

KM13

MB13

0,40

H214

70

92

41

14

KM14

MB14

0,60

H215

75

98

43

15

KM15

MB15

0,71

H216

80

105

46

17

KM16

MB16

0,88

H217

85

110

50

18

KM17

MB17

1,02

H218

90

120

52

18

KM18

MB18

1,20

H219

95

124

55

19

KM19

MB19

1,35

H220

100

130

58

20

KM20

MB20

1,50

H221

105

140

60

20

KM21

MB21

1,70

H222

110

145

63

21

KM22

MB22

1,90



H304

20

32

28

7

KM4

MB4

0,045

H305

25

38

29

8

KM5

MB5

0,075

H306

30

45

31

8

KM6

MB6

0,110

H307

35

52

35

9

KM7

MB7

0,140

H308

40

58

36

10

KM8

MB8

0,190

H309

45

65

39

11

KM9

MB9

0,250

H310

50

70

42

12

KM10

MB10

0,300

H311

55

75

45

12

KM11

MB11

0,350

H312

60

80

47

13

KM12

MB12

0,390

H313

65

85

50

14

KM13

MB13

0,460

H314

70

92

52

14

KM14

MB14

0,720

H315

75

98

55

15

KM15

MB15

0,830

H316

80

105

59

17

KM16

MB16

1,000

H317

85

110

63

18

KM17

MB17

1,200

H318

90

120

65

18

KM18

MB18

1,350

H319

95

124

68

19

KM19

MB19

1,550

H320

100

130

71

20

KM20

MB20

1,700

H321

105

140

74

20

KM21

MB21

1,950

H322

110

145

74

21

KM22

MB22

2,200



H2304

20

32

31

7

KM4

MB4

0,049

H2305

25

38

35

8

KM5

MB5

0,087

H2306

30

45

38

8

KM6

MB6

1,126

H2307

35

52

43

9

KM7

MB7

0,170

H2308

40

58

46

10

KM8

MB8

0,224

H2309

45

65

50

11

KM9

MB9

0,280

H2310

50

70

55

12

KM10

MB10

0,362

H2311

55

75

59

12

KM11

MB11

0,420

H2312

60

80

62

13

KM12

MB12

0,481

H2313

65

85

65

14

KM13

MB13

0,557

H2314

70

92

68

14

KM14

MB14

0,900

H2315

75

98

73

15

KM15

MB15

1,050

H2316

80

105

78

17

KM16

MB16

1,280

H2317

85

110

82

18

KM17

MB17

1,450

H2318

90

120

86

18

KM18

MB18

1,690

H2319

95

124

90

19

KM19

MB19

1,920

H2320

100

130

97

20

KM20

MB20

2,150

H2321

105

140

101

20

KM21

MB21

2,540

H2322

110

145

105

21

KM22

MB22

2,750

H2324

120

155

112

22

KM24

MB24

3,200

H2326

130

165

121

23

KM26

MB26

4,600

H2328

140

180

131

24

KM28

MB28

5,550

H2330

150

195

139

26

KM30

MB30

6,630

H2332

160

210

147

28

KM32

MB32

9,150

H2334

170

220

154

29

KM34

MB34

10,200

H2336

180

230

161

30

KM36

MB36

11,300

H2338

190

240

169

31

KM38

MB38

12,600

H2340

200

250

176

32

KM40

MB40

14,00

H2344

220

280

186

44

HM44



16,700

H2348

240

300

199

46

KM48



29,700

H2352

260

330

211

49

KM52



24,200

H2356

280

350

224

51

KM56



27,800



H3024

120

145

72

22

KML24

MBL24

1,95

H3026

130

155

80

23

KML26

MBL26

2,85

H3028

140

165

82

24

KML28

MBL28

3,15

H3030

150

180

87

26

KML30

MBL30

3,90

H3032

160

190

93

28

KML32

MBL32

5,20

H3034

170

200

101

29

KML34

MBL34

6,00

H3036

180

210

109

30

KML36

MBL36

6,85

H3038

190

220

112

31

KML38

MBL38

7,45

H3040

200

240

120

32

KML40

MBL40

9,20

H3044

220

260

126

41

KML44



10,50

H3048

240

290

133

46

KML48



13,00

H3052

260

310

145

46

KML52



15,50

H3056

280

330

152

50

KML56



17,50

H3060

300

360

168

54

KML60



23,00

H3064

320

380

171

55

KML64



24,50

H3068

340

400

187

58

KML68



28,50

H3072

360

420

188

58

KML72



30,50

H3076

380

450

193

62

KML76



36,00

H3080

400

470

210

66

KML80



41,50

H3084

420

490

212

66

KML84



43,50

H3088

440

520

228

77

KML88



65,20

H3092

460

540

234

77

KML92



69,50



H3120

100

130

76

20

KML20

MBL20

1,80

H3122

110

145

81

21

KML22

MBL22

2,40

H3124

120

155

88

22

KML24

MBL24

2,65

H3126

130

165

92

23

KML26

MBL26

3,65

H3128

140

180

97

24

KML28

MBL28

4,35

H3130

150

190

111

26

KML30

MBL30

5,50

H3132

160

210

119

28

KML32

MBL32

7,65

H3134

170

220

122

29

KML34

MBL34

8,40

H3136

180

240

131

30

KML36

MBL36

9,50

H3138

190

260

141

31

KML38

MBL38

11,00

H3140

200

290

150

32

KML40

MBL40

12,00

H3144

220

310

161

44

KML44



15,00

H3148

240

330

172

46

KML48



18,00

H3152

260

360

190

49

KML52



22,50

H3160

300

400

208

53

KML60



30,00

H3164

320

420

226

56

KML64



35,00

H3168

340

450

254

72

KML 68



H3172

360

470

259

75

KML72



H3176

380

490

264

77

KML76



H3180

400

520

272

82

KML80



H3184

420

540

304

90

KML84



H3188

440

560

307

90

KML88



H3192

460

580

326

95

KML92



H3196

480

620

335

95

KML96
